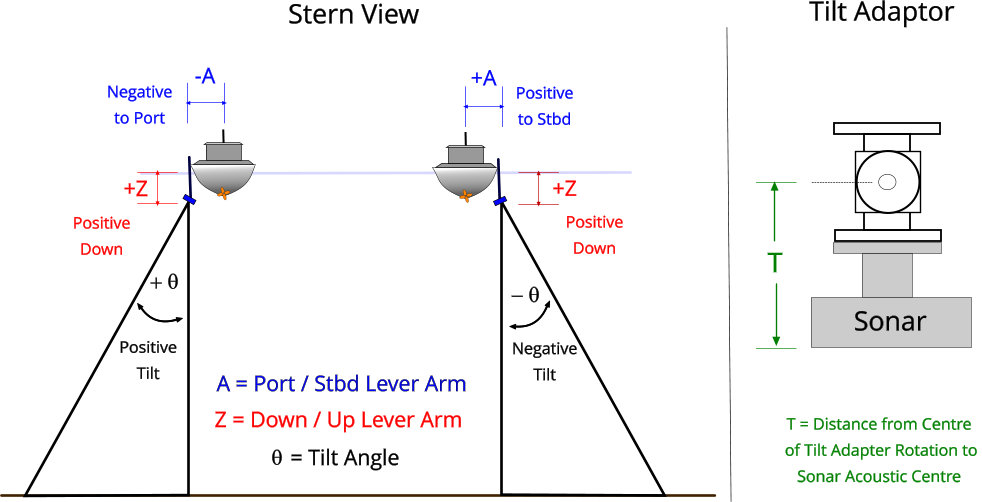

This tool calculates the resultant lever arm (shifted port/stbd & up/down) after rotating the sonar on a tilt adapter. Start with your current lever arm and the vertical distance from the tilt-adapter pivot point and the sonar acoustic centre. The new lever arm (absolute, not relative) will be calculated.
These calculators are informational tools, provided without warranty or cost, and should not be relied upon when planning any survey where financial or safety factors are present. MosaicHydro is not responsible for the consequences of any decisions or actions taken in reliance upon or as a result of the information provided by these tools. MosaicHydro is not responsible for any human or mechanical errors or omissions.
