This tool will calculate the Total Swath for a given depth (sonar altitude) and Swath Angle.

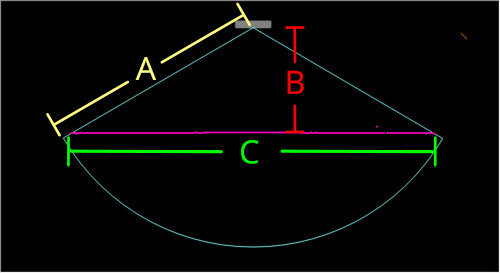

Enter the sonar altitude (depth) and your swath in degrees. The calculation will give you the linear distance between extreme outer beams (swath width) and the Minimum Range Setting on the sonar to achieve it.
All calculations are theoretical and cannot account for sonar performance and specific water conditions.
These calculators are informational tools, provided without warranty or cost, and should not be relied upon when planning any survey where financial or safety factors are present. MosaicHydro is not responsible for the consequences of any decisions or actions taken in reliance upon or as a result of the information provided by these tools. MosaicHydro is not responsible for any human or mechanical errors or omissions.
